Cleaning or Replacing the Moistener Pad Assembly

We suggest that you clean the moistener pad assembly from time to time to remove residue from the moistener pad. If wear of the moistener pad is affecting seal quality, you can replace the moistener pad assembly.

Connect+™ 1000 and Connect+™ 2000 Systems

Connect+™ 3000 Systems



Connect+® 1000 and Connect+® 2000 Systems

Watch a demonstration.

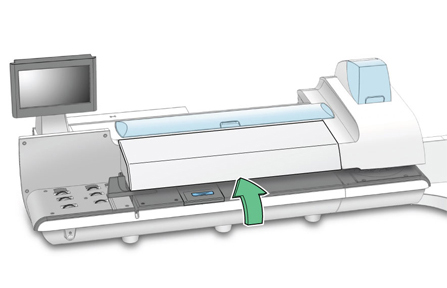

  1. Lift the feed cover.

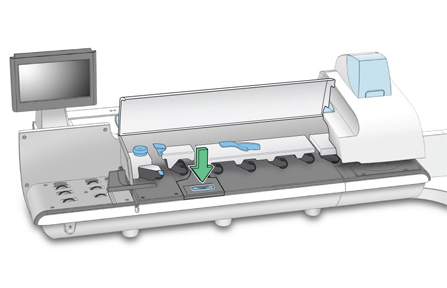

  2. Push down on the moistener pad assembly button.

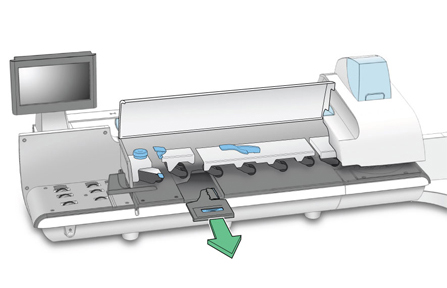

  3. Grasp the moistener pad assembly and pull it straight out towards you.

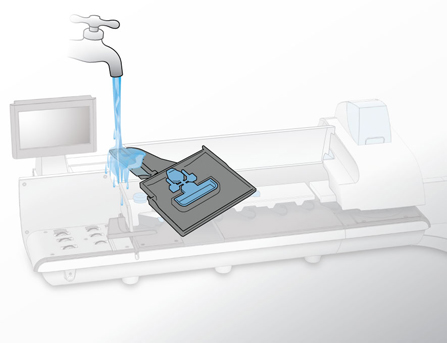

  4. Clean the moistening pad by running the pad under warm water.

  5. Replace the existing clean moistener pad assembly, or install a new one by pushing the assembly back on its track until it snaps into position.

    NOTE: Verify that the moistener pad assembly is perfectly level with the feed deck.

  6. Close the feed cover and select OK.

Back to top

Connect+® 3000 Systems

  1. Lift the feed cover.

  2. Pull up on the top release lever.

  3. Use the blue notch to pull on and open the moistener deck.

  4. Grasp the moistener pad assembly and slide out and away from you.

  5. Clean the moistening pad by running the pad under water.

  6. Replace the existing clean moistener pad assembly, or install a new one by sliding the assembly back on its track until it snaps into position.

  7. Push the moistener deck back into place.
  8. Push down on the top release lever until it snaps into place.
  9. Close the feed cover and select OK.

Back to top
